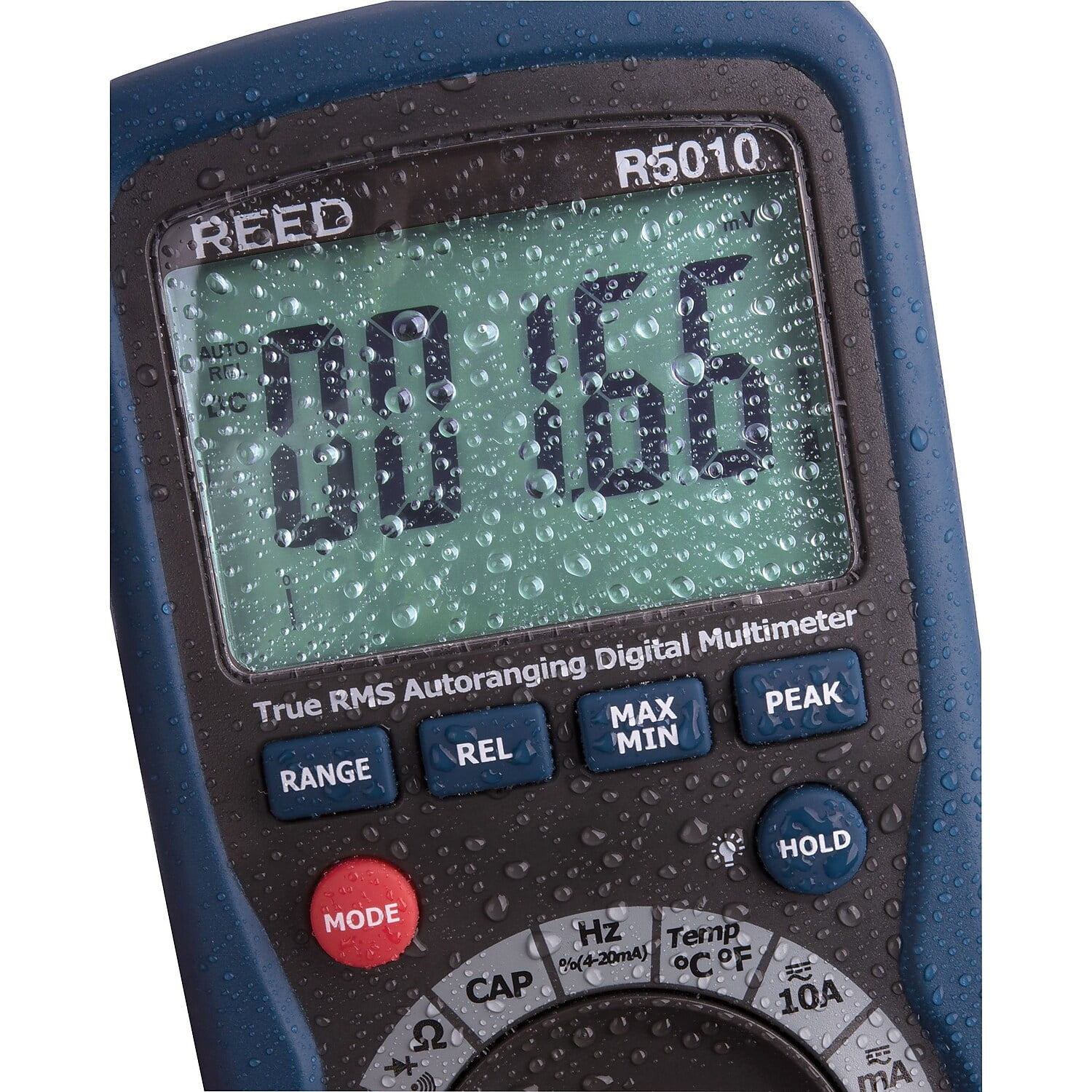

Reed Instruments REED R5010 True RMS Waterproof Digital Multimeter
Product details
| Management number | 237858693 | Release Date | 2026/07/11 | List Price | US$71.60 | Model Number | 237858693 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
True RMS multimeter with built-in non-contact voltage detector and 40,000 count backlit LCD display.<br><br>This auto ranging multimeter is IP67 rated, has a 40,000 count display for precise readings and is capable of measuring AC/DC voltage and current, frequency, resistance, capacitance and temperature. This DMM also includes diode and continuity tests and features 4-20 mA loop measurement and a digital analog bargraph.<br><br>• True RMS AC/DC voltage and current measurements.<br>• Measures frequency, resistance, capacitance and temperature.<br>• Diode check and continuity functions.<br>• Backlit LCD readout with analog bar graph.<br>• 4-20 mA process loop measurements with % readout.<br>• Data hold, Max/Min and Peak capture mode.<br>• IP67 dust and waterproof.<br>• Cat. IV 600V, Cat. III 1000V safety rating.<br>• 7.4"H x 3.2"W x 2.0"D.<br>• AC range of 400mV, 4, 40, 400, 1000V.<br>• DC range of 400mV, 4, 40, 400, 1000V.<br>• AC accuracy of + or -(1.0% rdg. + 5 dgt.) at 400mV and + or -(1.0% rdg. + 3 dgt.) for other ranges.<br>• DC accuracy of + or -(0.1% rdg. + 5 dgt.) at 1000V and + or -(0.06% rdg. + 2 dgt.) for other ranges.<br>• AC resolution of 0.1mV, 0.001, 0.01, 1V.<br>• DC resolution of 0.01mV, 0.0001, 0.01, 0.1V.<br>• AC/DC current range of 400, 4000 A, 40, 400mA, 10A.<br>• AC current accuracy of + or -(1.5% rdg. + 3 dgt.).<br>• DC current accuracy of + or -(1.0% rdg. + 3 dgt.).<br>• Temperature range of -58 to 1832degree f (-50 to 1000degree C).<br><br>• Sold as 1 Each.
- Sold as 1 Each.
- True RMS AC/DC voltage and current measurements. 4-20 mA process loop measurements with % readout. 7.4"H x 3.2"W x 2.0"D. DC accuracy of + or -(0.1% rdg. + 5 dgt.) at 1000V and + or -(0.06% rdg. + 2 dgt.) for other ranges. AC current accuracy of + or -(1.5% rdg. + 3 dgt.).
- Measures frequency, resistance, capacitance and temperature. Data hold, Max/Min and Peak capture mode. AC range of 400mV, 4, 40, 400, 1000V. AC resolution of 0.1mV, 0.001, 0.01, 1V. DC current accuracy of + or -(1.0% rdg. + 3 dgt.).
- Diode check and continuity functions. IP67 dust and waterproof. DC range of 400mV, 4, 40, 400, 1000V. DC resolution of 0.01mV, 0.0001, 0.01, 0.1V. Temperature range of -58 to 1832degree f (-50 to 1000degree C).
- Backlit LCD readout with analog bar graph. Cat. IV 600V, Cat. III 1000V safety rating. AC accuracy of + or -(1.0% rdg. + 5 dgt.) at 400mV and + or -(1.0% rdg. + 3 dgt.) for other ranges. AC/DC current range of 400, 4000 A, 40, 400mA, 10A.
| Multimeter type | Digital |
|---|---|
| Measurement type | True RMS AC Current Measurement |
| Volts | 1000 V |
| Brand | REED Instruments |
| Display | LCD |
| Power type | Battery |
| Model | R5010 |
| Screen size | 4" |
| Height | 7.4 in |
| Weight | 1.05 lb |
| Accessories | 1 x 9V battery |
| Has written warranty | No |
| Color | Multicolor |
| Material | Reed |
